Opal LEDstrip

FEATURES

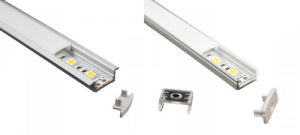

  • The Aluminium LED Profile is designed for the flexible LED Strip and is ideal for home and commercial purposes
  • Great for shop displays, cabinets and glass cases to highlight objects
  • Available for surface mount or recessed mounting
  • Complete with end caps and stainless steel mounting clips
  • Colour temperature options: 2700K, 3000K, 4000K (6000K on request)
  • Available in 5 metre reels and cut on site to most lengths (can be cut every 50mm)
  • Power up to 22W per meter at 2000 lumens per meter 3K, or 4K 2200 per meter lumens
  • On request 22W at 2400 lumens per metre
  • Control gear / remote 24V DC
  • Dimmable with a potentimeter
  • Beam angle 120°
  • IP40

CODE

  • LED STRIP
  • AZ-LED22-1M-2K
  • AZ-LED22-1M-3K
  • AZ-LED22-1M-4K
  • -
  • LED EXTRUSION
  • AZ-LEDEX-1M-RE
  • AZ-LEDEX-1M-SM
  • -
  • DRIVERS
  • HLG24-040
  • HLG24-060
  • HLG24-080
  • HLG24-185
  • LCU100/24
  • LCA100/24

WATTAGE

  • -
  • 22W Per Meter
  • 22W Per Meter
  • 22W Per Meter
  • -
  • -
  • -
  • -
  • -
  • -
  • 40W     Dimmable
  • 60W     Dimmable
  • 80W     Dimmable
  • 185W   Dimmable
  • 100W   Non-dimmable
  • 100W   DALI/DSI DIM

TYPE

  • -
  • LED Strip 24VDC 2700K
  • LED Strip 24VDC 3000K
  • LED Strip 24VDC 4000K
  • -
  • -
  • Recessed
  • Surface mounted
  • -
  • -
  • Driver 24VDC IP67
  • Driver 24VDC IP67
  • Driver 24VDC IP67
  • Driver 24VDC IP67
  • Driver 24VDC
  • Driver 24VDC

LUMENS

  • -
  • 1190lm
  • 1290lm
  • 1340lm
  • -
  • -
  • -
  • -
  • -
  • -
  • -
  • -
  • -
  • -
  • -
  • -

DIMENSIONS

  • -
  • Per Meter - or available in 5 metre reels on request
  • Per Meter - or available in 5 metre reels on request
  • Per Meter - or available in 5 metre reels on request
  • -
  • -
  • 23mm width x 8mm depth - 1m / 2m / 3m lengths
  • 18mm width x 8mm depth - 1m / 2m / 3m lengths
  • -
  • -
  • 148mm x 40mm x 32mm
  • 163mm x 43mm x 32mm
  • 196mm x 62mm x 39mm
  • 228mm x 68mm x 39mm
  • 295mm x 43mm x 30mm
  • 295mm x 43mm x 30mm
Download: Opal LED Strip
